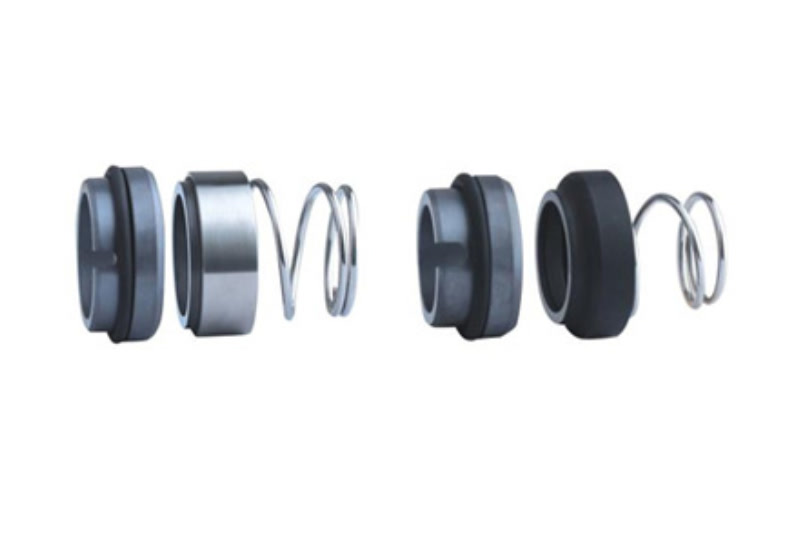

single conical spring unbalanced Mechanical Seal with “O” ring as secondary sealing offered for wide service applications. These seals designed are dependent of the direction of rotation, torque transmission is done by single conical spring and direction of rotation is seen from the drive end of the shaft. Clockwise rotating shaft required right handed spring & Anti-Clockwise rotating shaft required left handed spring, this seals are comfortable to use in wide range of application as below:
| Seal Faces | Carbon, Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, Stainless Steel & materials suitable for fluid |
| Secondary Seal | Silicon, Aflas, Kalrez, PTFE, GFT, TCV |
| Hardware & Spring | SS 316, SS 304, Hastelloy-C, Monel, Alloy-20 |
| Shaft Diameter | 19 mm to 100 mm (0.75” to 4.0”) |
| Pressure | Up to 10 bar (kg/cm²) |
| Temperature | -25°C to 200°C |
| Shaft Speed | Up to 3000 RPM |
